USSF700A
Non-silicone thermal pad
Non-silicone thermal pad
USSF700A is silicone-free thermal interface materials which are suitable for the cooling of components which may be affected by silicone outgassing such as optical devices, automotive electronics or military hardware.
Features
Thermal conductivity: 1.5 W/m*K
It’s made by non-silicone resin materials
Low contact thermal resistance
With electrical insulation
Outstanding thermal conductivity
Qualified for UL94V-0
Applicable to optical and sensitive electric components
Typical Applications
HDDS
Optical appliances
Specifications
Sheet form
Die-cut parts

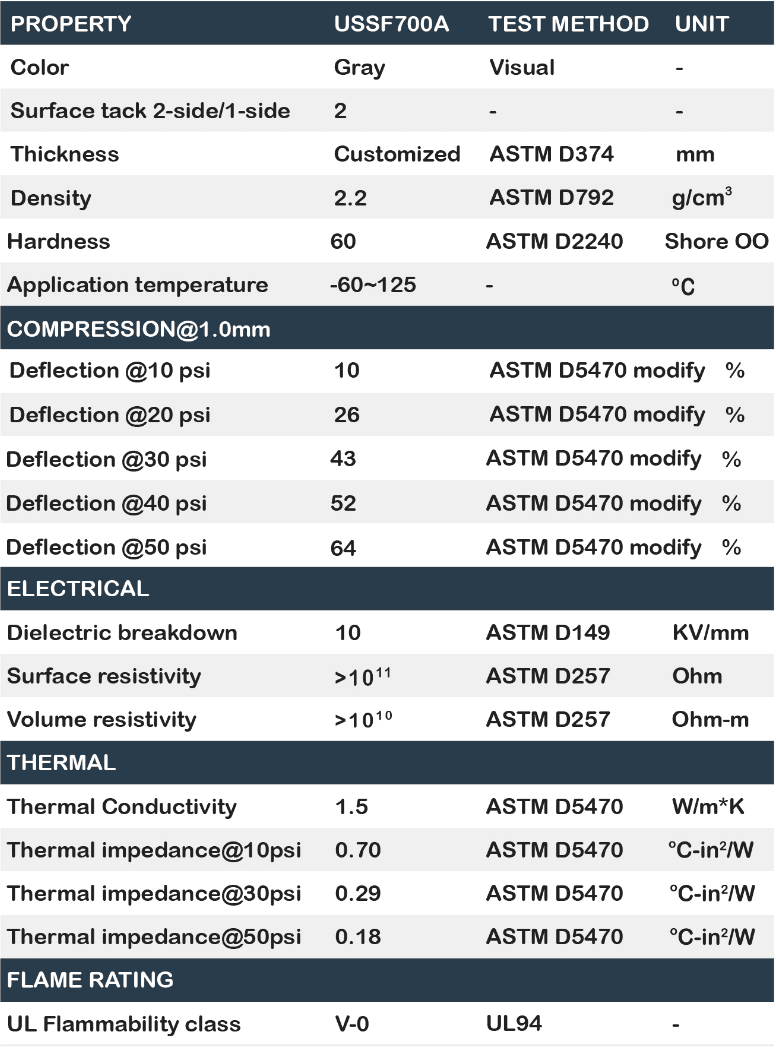

Typical Properties
The chemical formula indicates that if cyclic polydimethylsiloxane (HO-[Si(CH.)0].-H) is non-reactive, it's volatile anytime and everywhere.
For example, when the electric products have been placed in a confined space, the volatility of low-molecular-weight siloxanes will cause the electric products to be uncontrollable.
